SAE-1006 Steel Wire Rod

Steel grade G10060 (SAE 1006) - low carbon material from which wire rod and round wire are produced in riots or cut rods. Standart: ASTM A510M. Standard specification for general requirements for carbon steel wire rod and round wire. Classification: Low-carbon steel.

Classification :

Wire Rod

+8613220967662

sales@tianjinbaosteel.com

E-mail

PRODUCT DETAILS

SAE-1006 Steel Wire Rod Description

SAE-1006 Wire Rod Specifications
Nominal Diameter (mm)	Permissible Deviation (mm)	Nominal Cross Section (mm2)
Nominal Diameter (mm)	Permissible Deviation (mm)	Nominal Cross Section (mm2)	Nominal Weight (kg/m)	Permissible out – of Roundness(mm)
5.5	-/+ 0.3	0.238	0.186	0.48
6.0	-/+ 0.3	0.283	0.222
6.5	-/+ 0.3	0.332	0.260
7.0	-/+ 0.4	0.385	0.302	0.64
(*)8.0	-/+ 0.4	0.503	0.395
(**)10.0	-/+ 0.4	0.785	0.617
(**)12.0	-/+ 0.4	1.131	0.888
(**)14.0	-/+ 0.4	1.539	1.208
(**)16.0	-/+ 0.5	2.011	1.578	0.80

SAE-1006 Wire Rod Chemical Composition
Grade	C% (max)	Mn%	Si% (max)	S% (max)	P% (max)	Cr% (max)	Ni% (max)	Cu% (max)
SAE 1006	0.08	0.30-0.40	0.08	0.025	0.020	0.10	0.10	0.15

Scope of Application

Steel wire is widely used in the manufacture of many wire products.

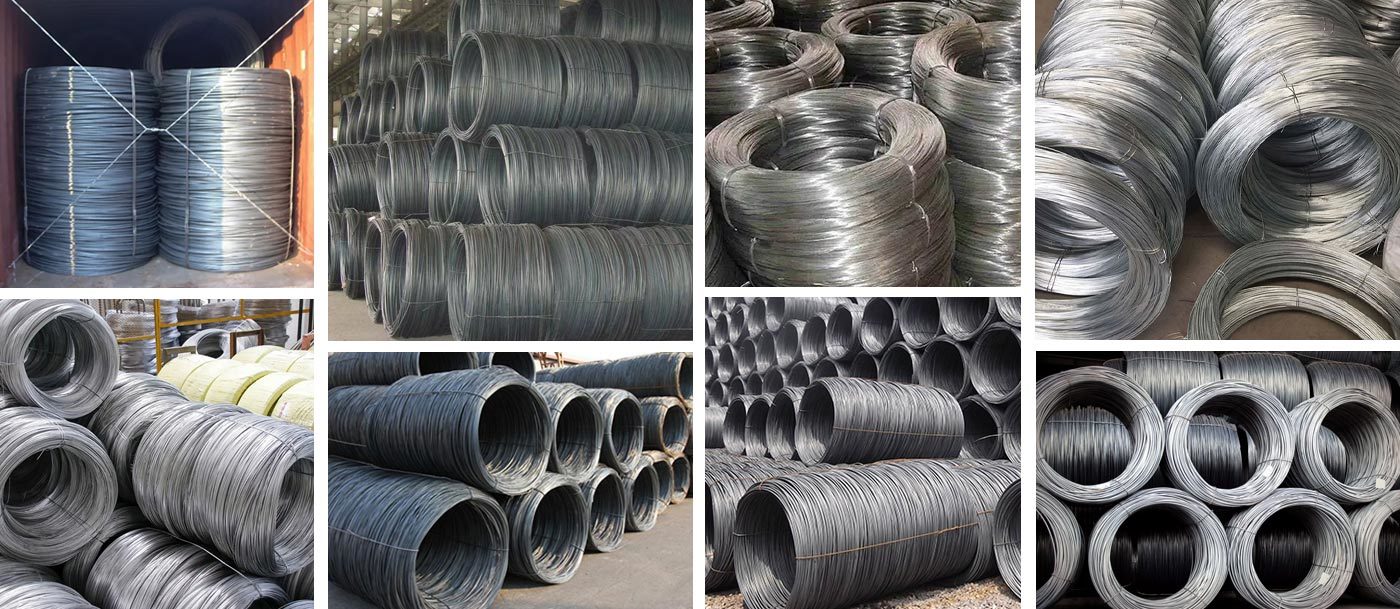

Packing and delivery

The main products are carbon steel, stainless steel, galvanized steel, color-coated steel, color-coated steel L, sheet piles, H-shaped steel, channel steel, angle steel, rebar, aluminum products, etc. With its own processing plant and inventory warehouse, it can provide customers with various customized services such as galvanizing, color coating, leveling, striping, straightening, pressing, etc., and is committed to meeting the diverse customization needs of customers.

FACTORY WORKSHOP

Tianjin Baosteel Group is committed to providing high-quality steel products and services to global customers.Our product includes sheet, coil, bar, pipe, angle steel, flat bar, square steel, channel steel and other metal products. There are rich grades of steel, including stainless steel, carbon steel, galvanized, coated, aluminum, and tinplate.

Factory Workshop

CUSTOMER VISIT

Tianjin Baosteel Group will always adhere to its original aspiration and provide one-stop procurement services for global steel projects to ensure that customers can purchase the most-effective steel products and bring sincere and thoughtful services to you.

APPLICATION AREAS

Our customers are distributed all over the country and involve a wide range of industries, such as automobiles, kitchen equipment, elevators, tableware, pressure vessels, metallurgical and chemical machinery, ships, electric heating equipment, and mechanical equipment.

FAQ

Once the products received by customer were found not comply with the products or contract demands, what will you do?

A: We will compensate the customer for all the loss without any hesitation.

Do you provide samples Is it free or extra?

A: Yes, we could offer free samples.

What certifications do your products have?

A: We have ISO 9001, SGS, EWC and other certifications.

What kind of payment terms would you accept?

A: We always do T/T.30% T/T as deposit,70% T/T as balance.

What is the delivery time?

A: 10-15 days

What is your MOQ?

A: We will provide Original Mill Usually 25 tonnes, but it can be adjusted according to your needs and the actual situation of the inventory.
